Equipment manufacturing

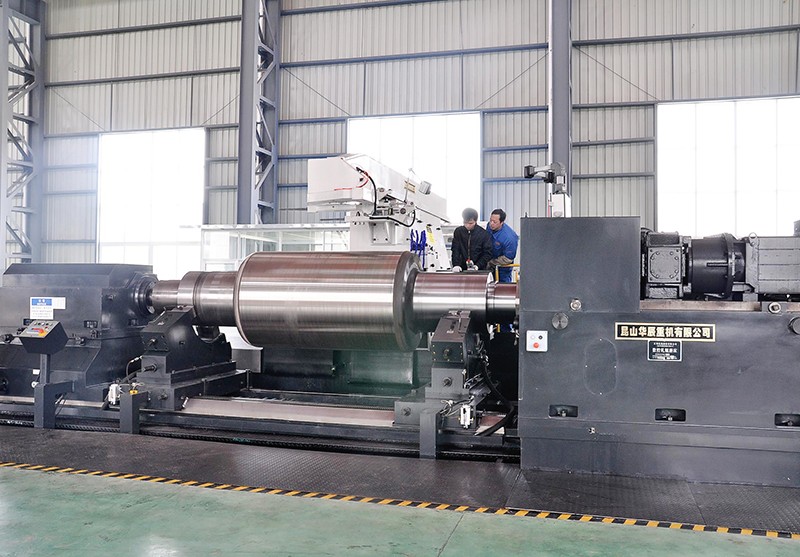

MQK84160-IV20
Product category：
| Processing diameter range (mm) | φ200-1600 | Head frame speed(rpm) | 5-60 |
| Apex distance（m) | 8、9、10、11、12 | Grinding wheel motor power(kW) | 51&95 |
| Maximum processing weight（t） | 20 | Carriage speed（mm/min) | ≤8000 |
| Minimum grinding roller parameters with minimum grinding wheel | φ480 mill φ250 | Linear speed of grinding wheel（m/s） | ≤45 |
| Maximum convex (concave) amount(mm) | ±2.5 | CNC system of grinder | 840DSL |
